304 Stainless Steel Automatic Emptying ANSI Certified Emergency Shower Eyewash Station
| MOQ: | 10 |
| Price: | $100 |
| Standard Packaging: | Carton / wooden |
| Delivery Period: | 2-3 Weeks |
| Payment Method: | L/C,D/P,D/A,T/T,Western Union |
Detail Information
Place of Origin
China
Brand Name
bohua
Certification
ANSI Z358.1-2014, CE
Model Number
BH32-5012A
Document
Brand:
Bohua
Model:
BH32-5012A
Material:
304 Stainless Steel
Warranty:
One Year
Origin:
China
Shower Flow Rate:
120-180L/min
Eyewash Flow Rate:
12-18L/min
Certificate:
ANSI Z358.1-2104, CE, ISO
Installation Type:
Floor Mounted
Highlight:
304 Automatic Emptying Emergency Shower
,Automatic Emptying ANSI Certified Emergency Shower
,Automatic Emptying Eyewash Station
Product Description

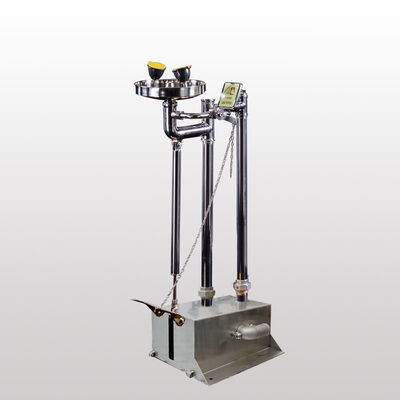

Large/Small Pedal Automatic Emptying Compound Eyewash
Product Overview
| Product Name | Large Pedal Automatic Emptying Compound Eyewash |
| Brand | BOHUA |
| Model | BH32-5012A |
| Production Standards | GBT38144.1/2-2019, US ANSIZ358.1-2014 |
| Function | Eyewash + Shower + Automatic Emptying |
Technical Specifications
| Nominal Pressure | 1.0 MPa |
| Work Pressure | 0.2~0.4 MPa |
| Eyewash Flow | ≥11.4 L/min |
| Water Inlet Size | 1-1/4 internal thread, height 102 mm |
| Drain Size | 1-1/4 internal thread, height 102 mm |
| Gross Weight | 19 kg |
| Net Weight | 17 kg |
Product Features
- Use Medium: Daily water at room temperature that meets hygienic standards
- Main Material: 304 stainless steel construction
- Eyewash Nozzle: Fixed soft rubber dust cover prevents loss and eye injury. Built-in multi-layer filter effectively removes water impurities, creating a foamy water column
- Temperature Range: Suitable for environments where minimum winter temperature is not lower than -5℃, featuring automatic emptying and anti-freezing function
Applications
Widely used in nuclear energy, power plants, medical treatment, chemical industry, petroleum, shipping, electronics, metallurgy, printing and dyeing, education, scientific research and other units, industries or fields.
