Inclosed Emergency Shower and Eyewash With Heating and Chilling System
| MOQ: | 1 |
| Price: | $10000 |
| Delivery Period: | 2-3Weeks |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union |
| Supply Capacity: | 1500L |
Detail Information
Place of Origin
China
Brand Name
Bohua
Certification
ANSI Z358.1-2014, CE , ISO
Model Number
0209-1102
Document
Highlight:
enclosed emergency shower eyewash
,heated chilled emergency eyewash
,emergency shower with temperature control
Product Description

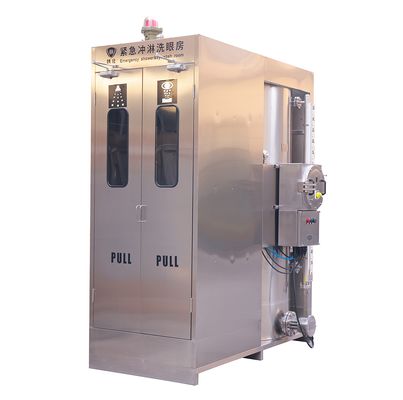

Enclosed Emergency Shower and Eyewash With Heating and Chilling System
Product Overview
A comprehensive enclosed emergency safety system featuring integrated heating and chilling capabilities for extreme temperature environments, constructed from high-grade SS316L stainless steel.
Technical Specifications
- Material: SS316L Stainless Steel
- Ambient Temperature Range: -45°C to 32°C
- Water Tank Capacity: ≥1400 liters
- Inlet Design Conditions: Water pressure 1.2MPA, water temperature 5-8°C
Performance Specifications
| Component | Water Pressure | Outlet Temperature | Flow Rate |
|---|---|---|---|
| Emergency Shower | 0.18-0.7 MPA | 25-35°C | ≥100 L/MIN |
| Eyewash | 0.18-0.7 MPA | 25-35°C | 12 L/MIN |
Safety & Control Features
- Explosion-Proof Components: Electric heater (EXD II CT6 IP66) and position indicator
- Electrical Specifications: Heater 380V, alarm light 24V
- Control System: Split explosion-proof box (power box and instrument box)
- Activation: Eyewash controlled by hand push plate, shower controlled by pull rod
- Safety Protection: Leakage protection and earth leakage circuit breaker
Additional Features
- Self-draining eyewash system with DN32 water inlet + ball valve assembly
- Water inlet with inspection valve and 100 mesh filter
- Liquid level display and water temperature display in tank
- DCS signal with passive dry contact and 1/2" gland NPT
- 2-inch SS316L matching flange ASME B16.5 CL150 & WN-RF for water inlet/outlet
- Customized SS316L stainless steel nameplate
- Insulation requirements determined by supplier
